What is YAT

Learn about YAT's core features, use cases, and system architecture

📌 One-Sentence Introduction

YAT (Yet Another Tunnel) is a powerful intranet penetration and application extension platform that enables you to securely and quickly access internal network services from anywhere.

🔥 Features

Private Deployment: Allows users to build dedicated edge nodes, controlling data sovereignty and network performance
Zero-Trust Full Chain: Abandon traditional perimeter defense, build end-to-end encryption and dynamic verification security防线
Full-Stack Network Extension: Provide layer 4/7 network capabilities based on YAT framework, meeting high-performance forwarding and complex business routing needs

🎯 Core Features

1. Intranet Penetration (Tunnel Service)

Expose internal network services to the public network without configuring router port forwarding.

Supported Protocols:

✅ HTTP/HTTPS - Web services, API interfaces
✅ TCP - Databases, SSH, custom services
✅ UDP - Game servers, DNS services
✅ WireGuard - VPN networking (coming soon)

Typical Scenarios:

Home NAS → Public network access
Local development server → Customer demo
Internal database → Remote work
IoT devices → Cloud management

2. Edge Server Network

YAT uses Edge servers as relay nodes to provide stable connection services.

Features:

🌍 Wide Network Coverage: Official multi-region nodes, support nearest access, and allow building exclusive Edge nodes
🔄 Smart High Availability: Auto failover and load balancing between nodes, ensuring continuous service
🔐 Mutual Authentication Security: mTLS-based mutual authentication and encrypted transmission, ensuring trusted communication
📡 Observable Status: Real-time node health monitoring and traffic statistics, supporting operational visualization
🤝 Sharing and Autonomy: Use official or community shared nodes, or deploy private nodes with自主 control

3. Application Extension System

Through the extension mechanism, YAT can support various remote access scenarios.

Built-in Extensions:

🖥️ HTTP Proxy - HTTP Proxy service
🔧 TCP Forward - TCP forwarding capability
☁️ UDP Forward - UDP protocol forwarding capability
📁 File Server - File server

Third-party Extensions: Developers can create their own extensions and publish to the marketplace.

4. Multi-Device Collaboration

Support multiple devices working together, each playing different roles:

Publisher - Device providing the service
Consumer - Device using the service
Controller - Device managing configuration

🏗️ System Architecture

Component Overview

┌─────────────────────────────────────────────────────┐
│                   YAT Ecosystem                        │
│                                                      │
│  ┌──────────────┐      ┌──────────────┐             │
│  │  yat-fe      │      │   Edge       │             │
│  │  Desktop     │◄────►│   Server     │              │
│  │  Client      │ mTLS │              │             │
│  └──────────────┘      └──────┬───────┘             │
│         │                     │                     │
│         │                     │                     │
│         ▼                     ▼                     │
│  ┌──────────────────────────────────────┐           │
│  │        Control Plane                  │           │
│  │  - User Authentication                │           │
│  │  - Edge Registration Management       │           │
│  │  - Certificate Issuance & Revocation  │           │
│  │  - DNS Management                     │           │
│  └──────────────────────────────────────┘           │
└─────────────────────────────────────────────────────┘

Component Description

1. YAT (Desktop Client)

Features:
- Manage tunnels (create, start, stop)
- Manage Edge servers (deploy, subscribe)
- Load and run extensions
- Display tunnel status and statistics

2. Edge (Edge Server)

Features:
- Tunnel runtime coordination
- mTLS connection management
- Channel status maintenance
- Real-time sync with client

Deployment Locations:

Public VPS (recommended)
Home router (requires public IP)
Cloud servers (AWS, GCP, Alibaba Cloud, etc.)

🔑 Core Concepts

Tunnel

Tunnel is YAT's core working unit, representing a remote access connection.

Properties:

Name: User-defined
Protocol: HTTP/HTTPS/TCP/UDP
Status: active / inactive / stopped
Sharing State: shared / exclusive

Example:

Tunnel Name: My NAS
Protocol: HTTP
Local Port: 5000
Remote Address: https://nas-abc123.myroxy.dev
Status: Running

Channel

Channel is a specific forwarding rule under a tunnel. One tunnel can have multiple channels.

Example:

Channel: VNC Channel
Rule 1: TCP 5900 → Remote 5900
Rule 2: UDP 5900 → Remote 5900

Edge Server

Edge server is a node in the YAT network, responsible for traffic forwarding, service coordination, etc.

Properties:

ID: Unique identifier
Name: User-defined
Status: online / offline
Public IP: Edge's public IP address
Domain: System-assigned domain
Owner: Creator or sharer

🆚 Comparison with Other Tools

Feature	YAT	frp	ngrok	Cloudflare Tunnel
GUI Client	✅ Electron desktop app	❌ CLI	✅ Web	✅ Web
Extension System	✅ Plugin architecture	❌	❌	❌
Multi-Device Collaboration	✅ Actor model	❌	❌	❌
mTLS Encryption	✅ Mutual authentication	⚠️ One-way	✅	✅
Custom Edge	✅ Self-deploy	✅	❌	❌
Edge Marketplace	✅ Shared subscription	❌	❌	❌
WireGuard	✅ In progress	❌	❌	❌
Open Source	✅	✅	❌	❌

🎨 Interface Preview

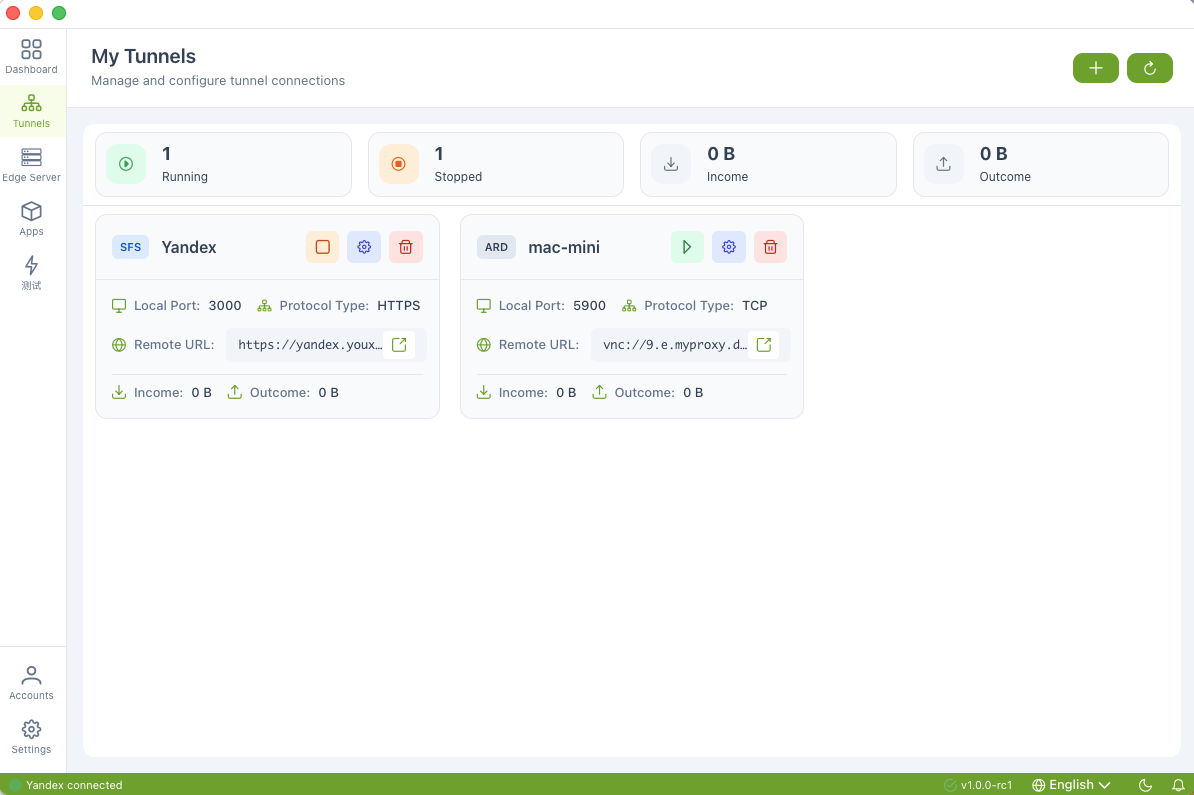

Main Interface

📸 Main interface screenshot
Description: Shows tunnel list, statistics cards, create button

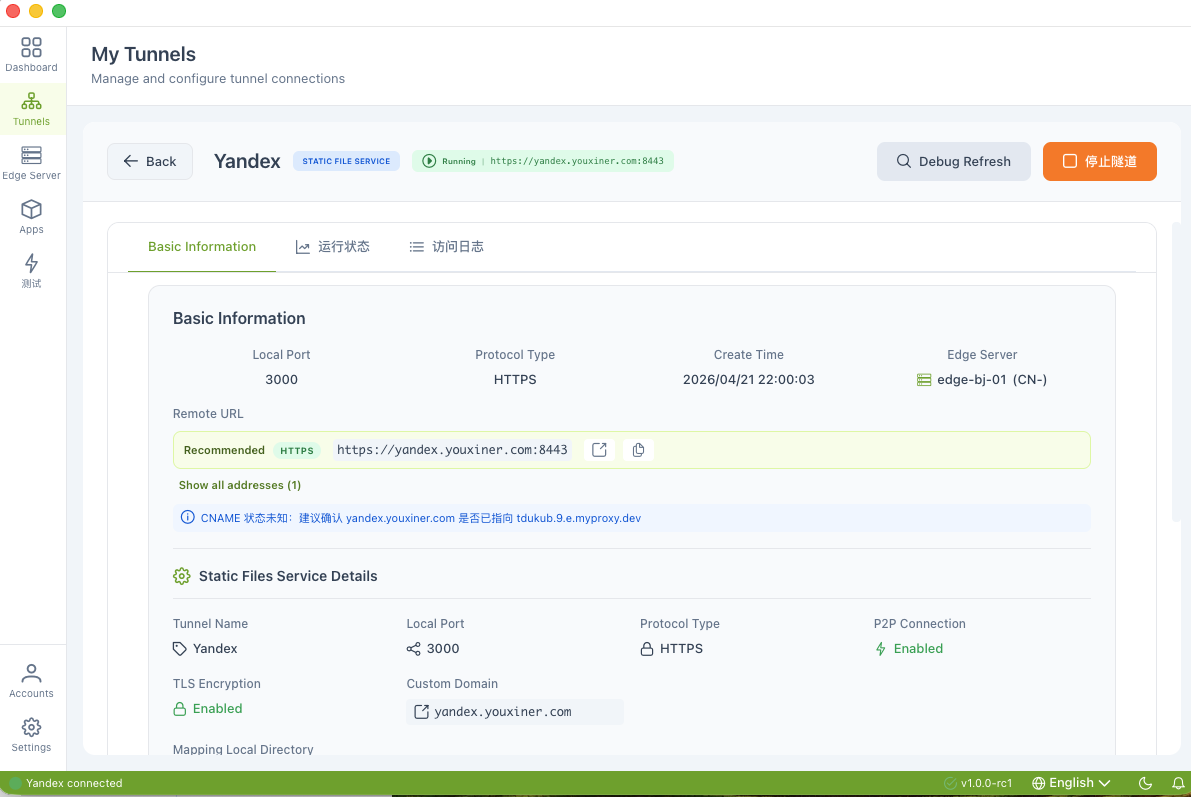

Tunnel Details

📸 Tunnel details page Description: Shows tunnel status, remote addresses, channel list, action buttons

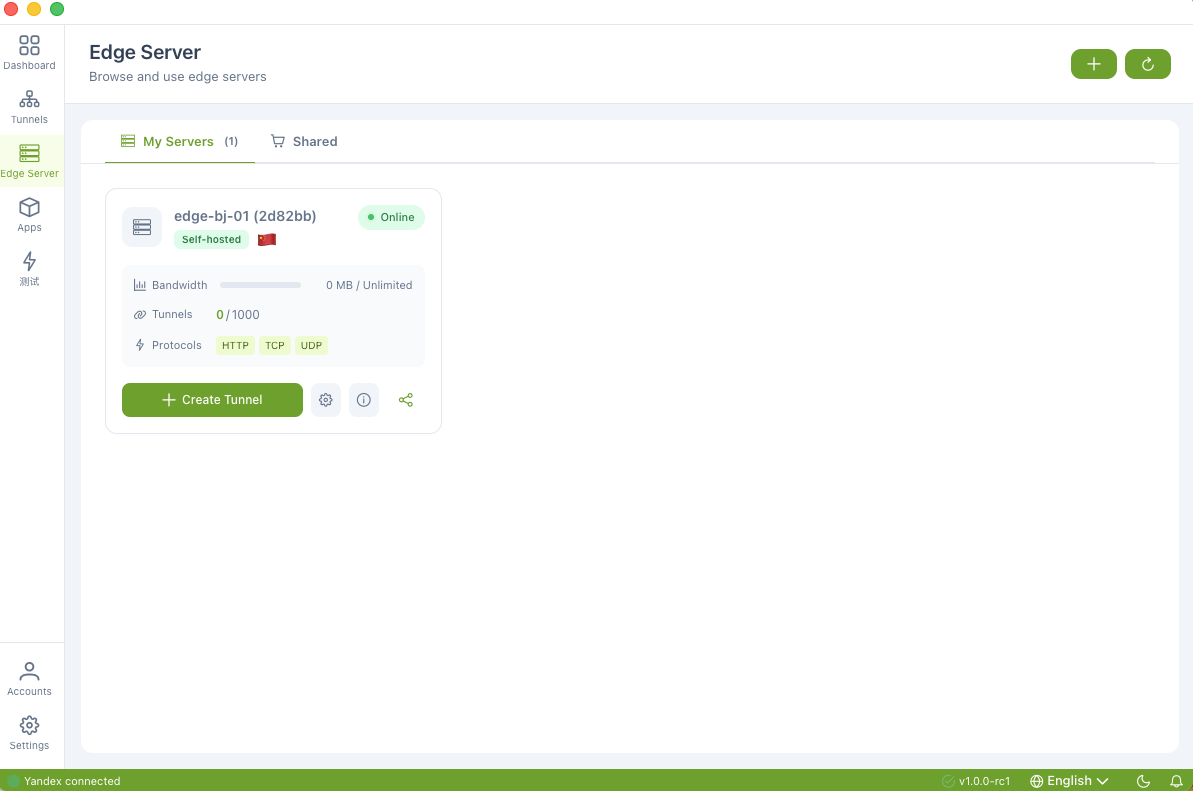

Edge Management

📸 Edge management page Description: Shows Edge list, deployment dialog, subscription marketplace

💡 Use Cases

Personal Users

🏠 Home NAS Remote Access - Access home files anytime, anywhere
💻 Development Environment Sharing - Expose local dev server to team members
🎮 Game Server - Build private game server
📹 Security Camera - Remotely view home surveillance

Team Users

🏢 Internal Service Exposure - Expose internal APIs to external partners
🔧 Remote Operations - SSH remote server management
🖥️ Remote Desktop - ARD/VNC remote assistance
📊 Data Sync - Cross-office data synchronization

Developers

🚀 App Demo - Showcase locally developed apps to clients
🔌 Webhook Testing - Receive webhook callbacks from external services
🧪 API Debugging - Debug APIs requiring public network access

🔐 Security Features

1. mTLS Mutual Authentication

All connections use mTLS (Mutual TLS), ensuring:

✅ Client verifies Edge server identity
✅ Edge server verifies client identity
✅ Prevents man-in-the-middle attacks

2. Certificate Management

📜 Automatic certificate issuance
🔄 Automatic certificate renewal
❌ Certificate revocation (CRL)
🔒 Edge sub-CA mechanism

3. Access Control

👤 User authentication (OAuth)
🔑 Device ID management
👥 Sharing permission control
🚫 Subscription revocation mechanism

🚀 Next Steps

Now that you understand what YAT is, let's start using it!

👉 Read the Quick Start Guide

Quick Start - Get started with YAT in 5 minutes
Tunnel Management - Learn core features
Edge Server Management - Deploy and manage Edge
Developer Documentation - Understand technical architecture

YAT Team - Making intranet penetration simpler
