Apps and Extensions

Learn about YAT's application ecosystem and extension system

---

📋 Table of Contents

• App Overview
• Built-in Apps
• Extension System
• Install Extensions
• Use ARD Remote Desktop
• Develop Extensions
• FAQ

---

App Overview

What is an App?

In YAT, an App is a definition of specific remote access capabilities, including:

• 📝 Configuration Form - Configuration UI when creating tunnels
• 🎨 UI Components - Custom display in tunnel details
• 🔘 Action Buttons - Definitions for start, stop and other operations
• 🪝 Lifecycle Hooks - Pre-start and post-start processing logic

App vs Extension

Concept	Description	Relationship
App	Remote access capability definition	Abstract concept
Extension	Carrier of App	Contains App definition + metadata

Example:

• ARD Extension contains ARD app definition
• One extension can contain multiple apps (future support)

---

Built-in Apps

HTTP Proxy

Purpose: Expose local HTTP services to public network

Features:

• ✅ Automatic HTTPS
• ✅ Custom domains
• ✅ Path rewriting

Configuration Items:

- Tunnel name
- Local port (e.g., 3000, 8080)
- Local host (default 127.0.0.1)
- Transport mode
- Sharing settings

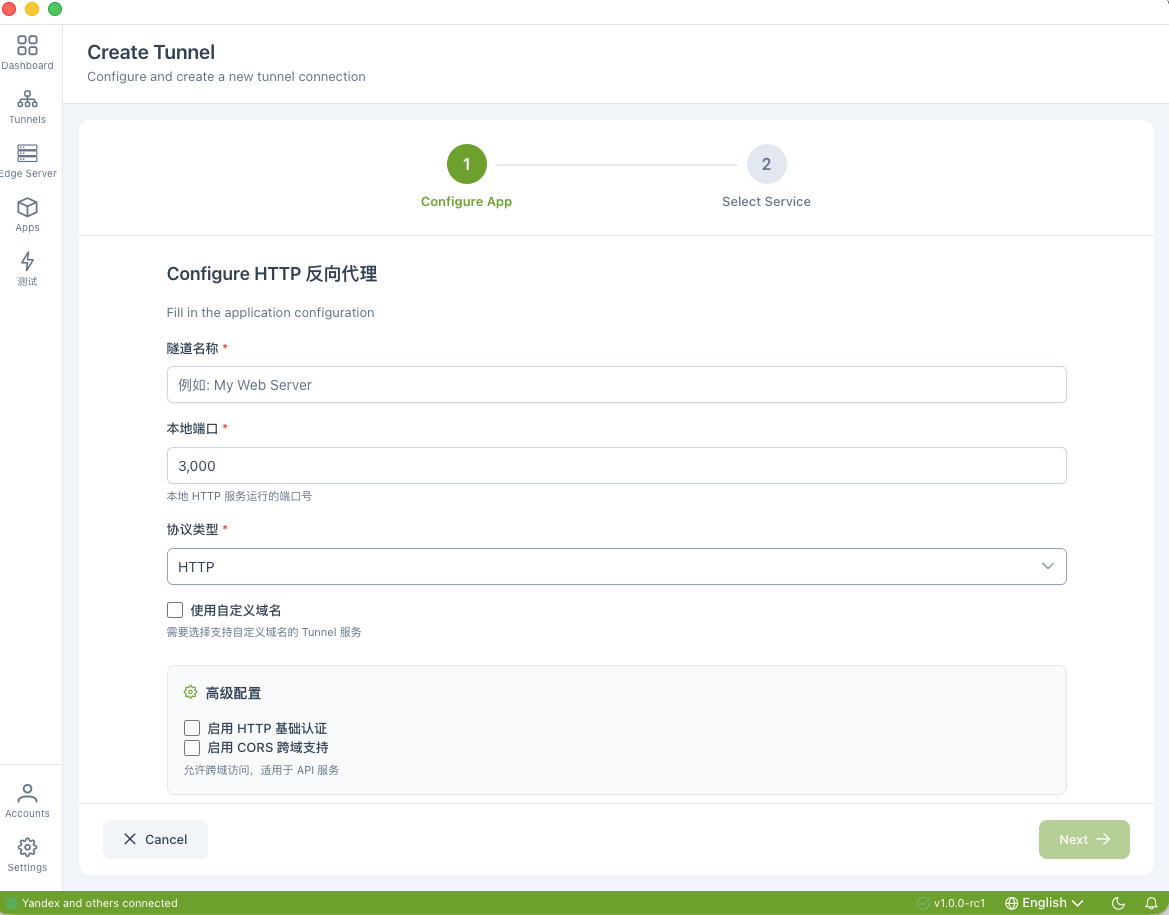

📸 HTTP Proxy Configuration Form

Description: Shows port input, transport mode selection

Use Cases:

• Local development server demo
• Webhook testing
• API debugging

TCP Forward

Purpose: Forward any TCP protocol

Features:

• ✅ Transparent transmission
• ✅ Long connection support
• ✅ Auto reconnect

Configuration Items:

- Tunnel name
- Local port
- Remote port (optional)
- Local host

Use Cases:

• SSH remote access
• Database connection
• Custom TCP services

UDP Forward

Purpose: Forward UDP protocol

Features:

• ✅ Low latency
• ✅ No connection state
• ✅ Broadcast support

Use Cases:

• DNS service
• Game servers
• Audio/video streaming

---

Extension System

Extension Architecture

┌─────────────────────────────────┐
│         YAT Client               │
│  ┌───────────────────────────┐  │
│  │   Extension Runtime Host  │  │
│  │  - Extension Loader       │  │
│  │  - Host API Bridge        │  │
│  │  - Lifecycle Management   │  │
│  └───────────┬───────────────┘  │
│              │                   │
│  ┌───────────▼───────────────┐  │
│  │    Extension               │  │
│  │  - App Definition         │  │
│  │  - Vue/React Components   │  │
│  │  - Lifecycle Hooks        │  │
│  └───────────────────────────┘  │
└─────────────────────────────────┘

Extension Capabilities

Extensions can:

• ✅ Customize configuration forms
• ✅ Customize detail pages
• ✅ Define action buttons
• ✅ Implement lifecycle hooks
• ✅ Call Host API (start/stop channels)
• ✅ Customize remote address resolution

Extension Restrictions

For security reasons, extensions cannot:

• ❌ Directly access file system
• ❌ Execute system commands
• ❌ Access unauthorized APIs
• ❌ Modify other extensions' data

---

Install Extensions

Method 1: Install from Marketplace (In Development)

1. Click Apps > Marketplace
2. Browse available extensions
3. Click Install
4. Wait for installation to complete

Method 2: Local Installation

1. Download extension package (.yat or directory)
2. Place in extension directory:

macOS:

~/Library/Application Support/yat/extensions/

Windows:

%APPDATA%/yat/extensions/

Linux:

~/.config/yat/extensions/

3. Restart YAT client
4. Extension auto-loads

Verify Installation

1. Click Apps
2. View installed extensions list
3. Confirm extension status is Enabled

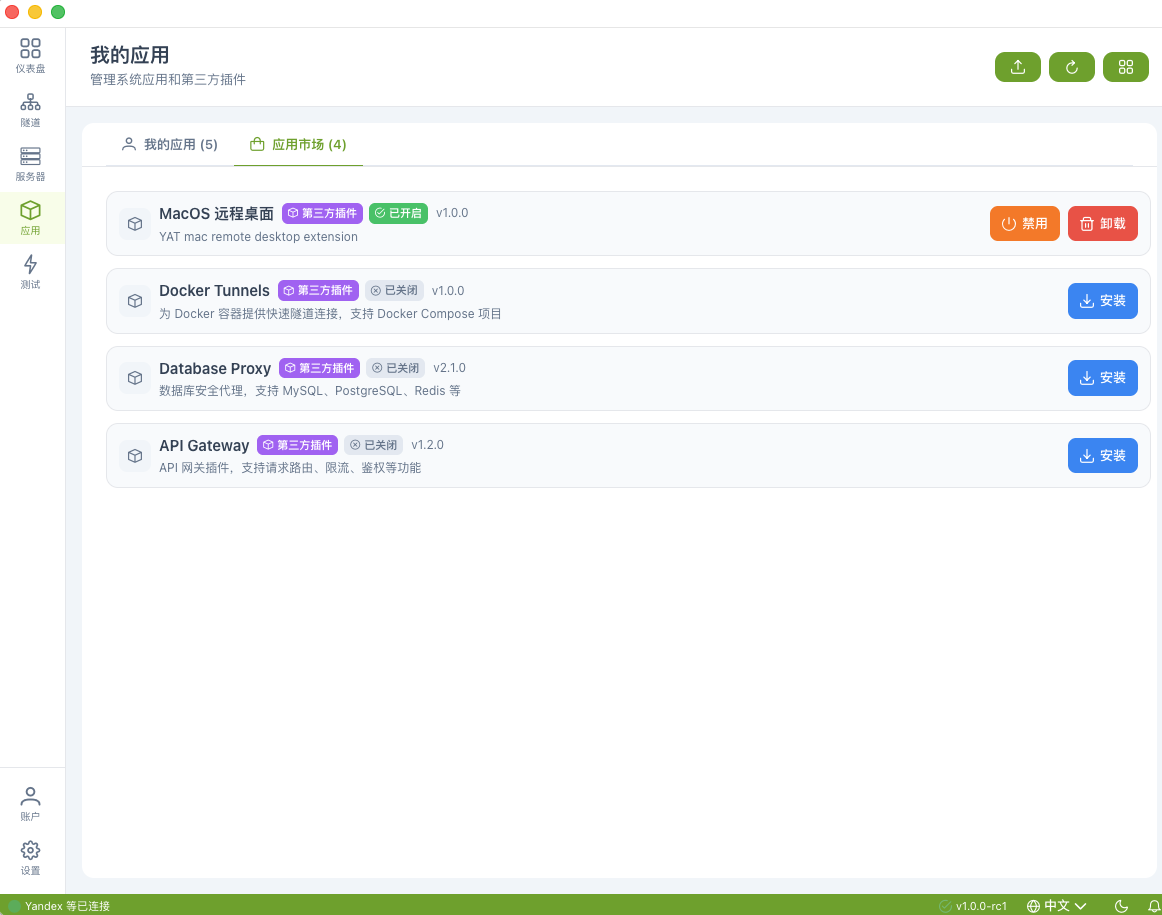

📸 Extension Management Page

Description: Shows installed extensions, enable/disable toggles, uninstall buttons

Uninstall Extension

1. Find installed extension
2. Click Uninstall
3. Confirm uninstall

⚠️ Note: Uninstalling extension will delete all tunnels created by that extension

---

Use ARD Remote Desktop

ARD (Apple Remote Desktop) extension is YAT's first official extension for macOS remote desktop access.

Features

• 🖥️ VNC Remote Desktop - Standard VNC protocol
• 🔐 Secure Transmission - mTLS encryption
• 🌐 Multiple Transport Modes - Relay / P2P / WireGuard
• 👥 Role Separation - Publisher / Consumer
• 📸 Desktop Snapshot - Real-time preview

Prerequisites

Publisher (Server Side):

• ✅ macOS system
• ✅ Screen sharing or remote management enabled
• ✅ YAT client + ARD extension

Consumer (Client Side):

• ✅ Any system (macOS/Windows/Linux)
• ✅ YAT client + ARD extension
• ✅ VNC client (e.g., RealVNC, TightVNC)

Configure Publisher

Step 1: Enable macOS Screen Sharing

1. Open System Settings > General > Sharing
2. Enable Screen Sharing or Remote Management
3. Set access permissions

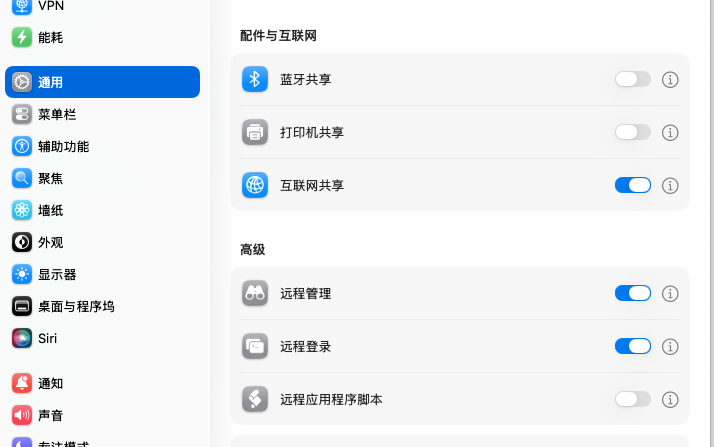

📸 macOS Screen Sharing Settings

Description: Shows sharing toggle, permission settings

Step 2: Create ARD Tunnel

1. Click Tunnels > Create Tunnel
2. Select Mac Remote Desktop
3. Fill in configuration:
   • Tunnel Name: My Mac
   • Target Host: 127.0.0.1 or LAN IP
   • Role: Server (Publisher)
4. Click Create

Description: Shows hostname input, role selection, transport mode

Step 3: Start Tunnel

1. Find created tunnel
2. Click Connect button
3. Wait for status to change to Running

Pre-start Checklist:

• ✅ Local port 5900 reachable
• ✅ Edge online
• ✅ Role is Publisher

Configure Consumer

Step 1: View Shared Tunnel

On Consumer device:

1. Open Tunnels page
2. See shared tunnel created by Publisher
3. Role auto-identified as Consumer

Step 2: Connect to Remote Desktop

Method 1: Through YAT Client

1. Click Connect Remote Desktop button
2. VNC client auto-launches
3. Enter password (if required)

Method 2: Manual Connection

1. Copy remote address (e.g., vnc://edge.myroxy.dev:12345)
2. Open VNC client
3. Paste address and connect

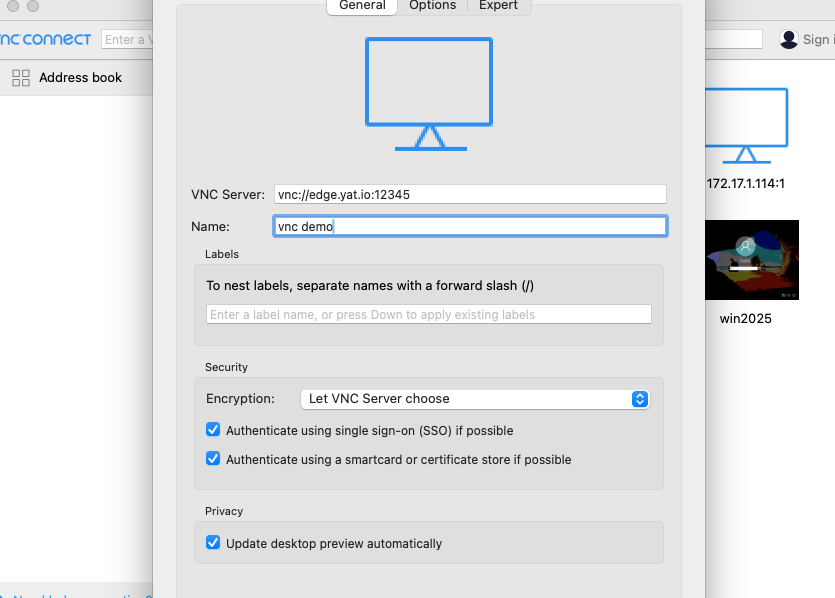

📸 VNC Client Connection Interface

Description: Shows VNC client, address input, connect button

Role Description

Publisher (Server)

• 🔧 Permissions: Start/stop/control tunnel
• 📡 Responsibilities: Provide VNC service
• 💻 Device: Controlled Mac

Consumer (Client)

• 👁️ Permissions: View status, connect to remote desktop
• 🖱️ Responsibilities: Use remote desktop
• 💻 Device: Controlling device

Advanced Configuration

Transport Mode Selection

Mode	Latency	Bandwidth	Use Case
Relay	Medium	Medium	General scenarios
P2P	Low	High	Same network/low latency
WireGuard	Low	High	Large file transfers

Custom Port

Default uses port 5900. To modify:

1. Change VNC listen port in macOS
2. Fill custom port when creating tunnel

---

Develop Extensions

Quick Start

For detailed extension development guide, refer to: EXTENSION_DEVELOPER_GUIDE.md

Development Steps Overview

1. Initialize Project

mkdir my-extension
cd my-extension
npm init -y
npm install @hilow/extension-types vue typescript vite

2. Create Entry File

// src/index.ts
import type { AppExtensionPackage } from '@hilow/extension-types'

export const extension: AppExtensionPackage = {
  metadata: {
    id: 'app-my-extension',
    name: 'My Extension',
    version: '1.0.0',
    description: 'My custom extension',
    author: 'Developer'
  },
  appDefinition: {
    id: 'app-my-extension',
    i18n: { /* ... */ },
    actions: [ /* ... */ ],
    hooks: { /* ... */ }
  }
}

3. Develop Components

Create Vue/React components for configuration forms and detail pages.

4. Test Extension

npm run build
# Copy dist directory to extension directory
# Restart YAT client

5. Publish Extension

Package extension and publish to marketplace (coming soon).

Example Projects

• ARD Extension: extensions/ard/
• React Example: extensions/react-example/
• Basic Example: extensions/example/

---

FAQ

Q: Extension not showing after installation?

Checklist:

1. Is extension directory structure correct
2. Does it contain index.js entry file
3. Did you restart YAT client
4. Check developer tools console for errors

Q: ARD extension connection failed?

Possible Reasons:

1. macOS screen sharing not enabled
2. Port 5900 occupied
3. Firewall blocking connection
4. Edge offline

Resolution Steps:

# Check port
lsof -i :5900

# Check screen sharing status
defaults read /var/db/launchd.db/com.apple.launchd/overrides.plist com.apple.screensharing

Q: How to develop custom extensions?

Read Extension Development Guide, including:

• Type system explanation
• Host API documentation
• Complete example code
• Packaging and publishing process

Q: Can extensions access my data?

Extensions can only access:

• ✅ Their own tunnel data
• ✅ Interfaces exposed by Host API
• ✅ Configurations provided by users

Extensions cannot access:

• ❌ Other extensions' data
• ❌ System files
• ❌ Unauthorized network resources

Q: Will extensions auto-update?

Currently doesn't support auto-update. Need to:

1. Download new version
2. Replace old version
3. Restart YAT

Auto-update feature in development.

---

💡 Best Practices

1. Choose Appropriate Transport Mode

• Web services: HTTP/HTTPS + Relay
• Remote desktop: TCP/UDP + P2P
• Database: TCP + WireGuard

2. Security Recommendations

• Only start tunnels when needed
• Use exclusive mode (personal use)
• Regularly check tunnel list
• Keep extensions updated

3. Performance Optimization

• Prioritize P2P mode
• Use WireGuard for large file transfers
• Avoid running too many tunnels simultaneously

---

📚 Related Documentation

• Extension Development Guide - Complete extension development documentation
• Tunnel Management - Create and manage tunnels
• Transport Modes - Learn about transport mode differences
• Multi-Device Collaboration - Publisher/Consumer roles

---

YAT Team - Making intranet penetration simpler
