Tunnel Management

Learn how to create, manage, and monitor tunnels

---

📋 Table of Contents

• Tunnel Overview
• Create Tunnel
• Start and Stop
• View Tunnel Details
• Tunnel Sharing and Collaboration
• Delete Tunnel
• Tunnel Statistics
• FAQ

---

Tunnel Overview

What is a Tunnel?

Tunnel is YAT's core working unit, used to expose internal network services to the public network.

Tunnel Components:

• Intent - What you want to do (protocol, configuration)
• Channels - Specific forwarding rules
• Participants - Devices and their roles
• Routes - Running links

Tunnel Status

Status	Description	Icon
active	Running	🟢
inactive	Not started	⚪
stopped	Stopped	🔴
failed	Start failed	❌
negotiating	Negotiating	🟡

Supported App Types

App	Protocol	Description
HTTP Proxy	HTTP/HTTPS	Web services, APIs
TCP Forward	TCP	Databases, SSH
UDP Forward	UDP	Game servers, DNS
ARD Remote Desktop	TCP+UDP	macOS Remote Desktop

---

Create Tunnel

Method 1: Create from Tunnels Page

1. Click Tunnels in left navigation
2. Click Create Tunnel button
3. Select app type

📸 App Selection Dialog

Description: Shows available apps list, app icons and descriptions

Method 2: Create from Edge Page

1. Click Edges in left navigation
2. Select an Edge server
3. Click Create Tunnel button

Configure Tunnel

HTTP Proxy

Configuration Items:

• Tunnel Name - Custom name (required)
• Local Port - Local service port (required)
• Local Host - Local listen address (default 127.0.0.1)
• Transport Mode - Relay / P2P / WireGuard
• Sharing Settings - Shared / Exclusive

📸 HTTP Proxy Configuration Form

Description: Shows name, port, transport mode and other configuration items

TCP/UDP Forward

Configuration Items:

• Tunnel Name - Custom name
• Local Port - Local listen port
• Remote Port - Remote expose port (optional)
• Local Host - Local listen address

ARD Remote Desktop

Configuration Items:

• Tunnel Name - Custom name
• Target Host - Target Mac's hostname or IP
• Transport Mode - Relay / P2P / WireGuard
• Role - Server / Client

Configuration Initialization

Some apps automatically initialize configuration during creation:

// ARD Example
{
  localHost: '127.0.0.1',
  sharedState: 'shared',
  tunnelRole: 'publisher',
  transport: 'relay',
  creatorDeviceId: 'device-xxx'
}

Creation Successful

After successful creation:

• ✅ Tunnel appears in tunnel list
• ✅ Status is Inactive
• ✅ Can click to view details

---

Start and Stop

Start Tunnel

Method 1: Start from List

1. Find tunnel card
2. Click Start button
3. Wait for status to change to Running

Method 2: Start from Details

1. Click View Details
2. Click Start button

📸 Tunnel Startup Process

Description: Shows start button, loading state, success message

Startup Process

User clicks start
  ↓
Check Edge connection
  ↓
Check local port
  ↓
Call Host API (startChannels)
  ↓
Edge creates channels
  ↓
Status syncs to client
  ↓
Display running

Stop Tunnel

Method 1: Stop from List

1. Find running tunnel
2. Click Stop button
3. Confirm stop

Method 2: Stop from Details

1. Enter tunnel details
2. Click Stop button

Restart Tunnel

When tunnel runs abnormally, click Reconnect button to restart.

---

View Tunnel Details

Enter Details

Click View Details button on tunnel card.

Details Page Structure

1. Basic Information

• Tunnel Name
• App Type
• Edge Server
• Created At
• Updated At

📸 Tunnel Details - Basic Info

Description: Shows name, app, Edge, timestamps and other info

2. Remote Addresses

Shows available remote access addresses:

• System-assigned Domain - xxx.myroxy.dev
• Custom Domain - If configured
• CNAME Status - DNS verification status

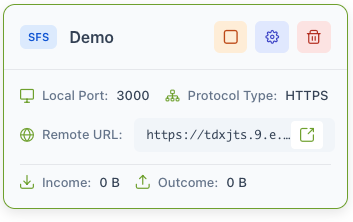

📸 Tunnel Details - Remote Addresses

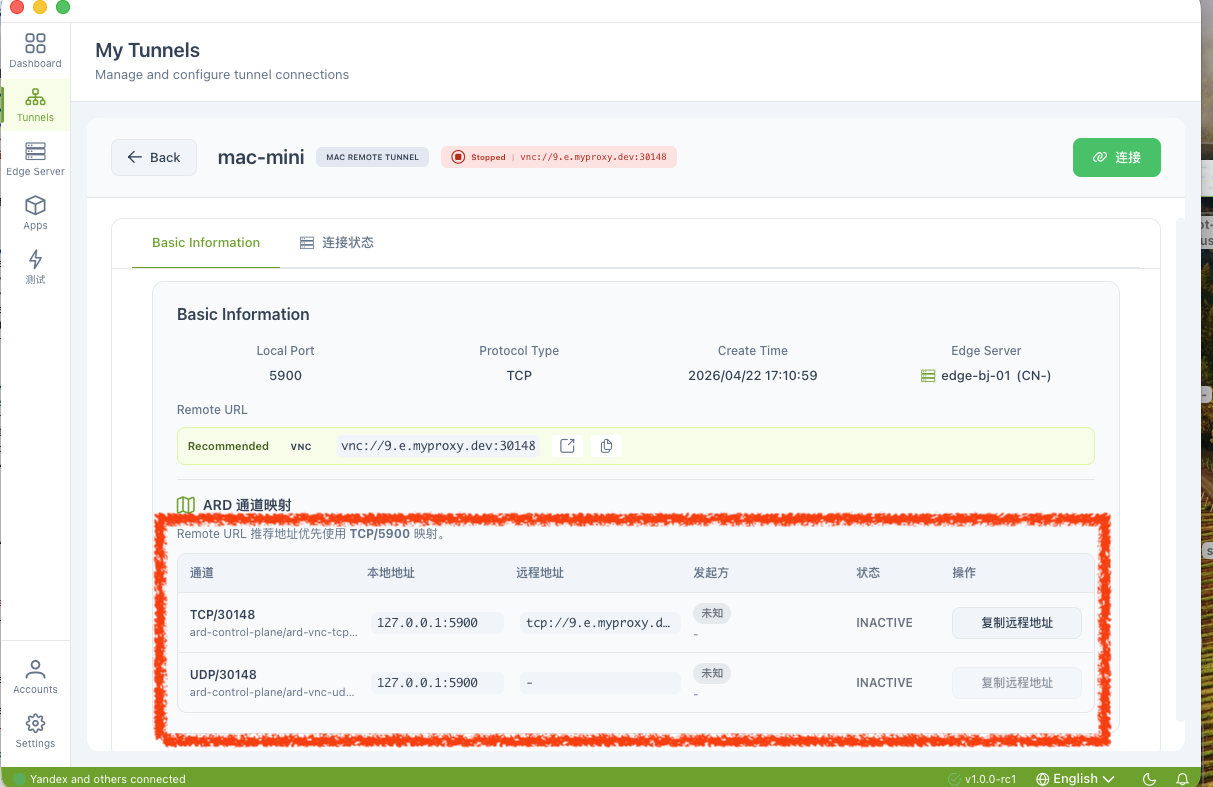

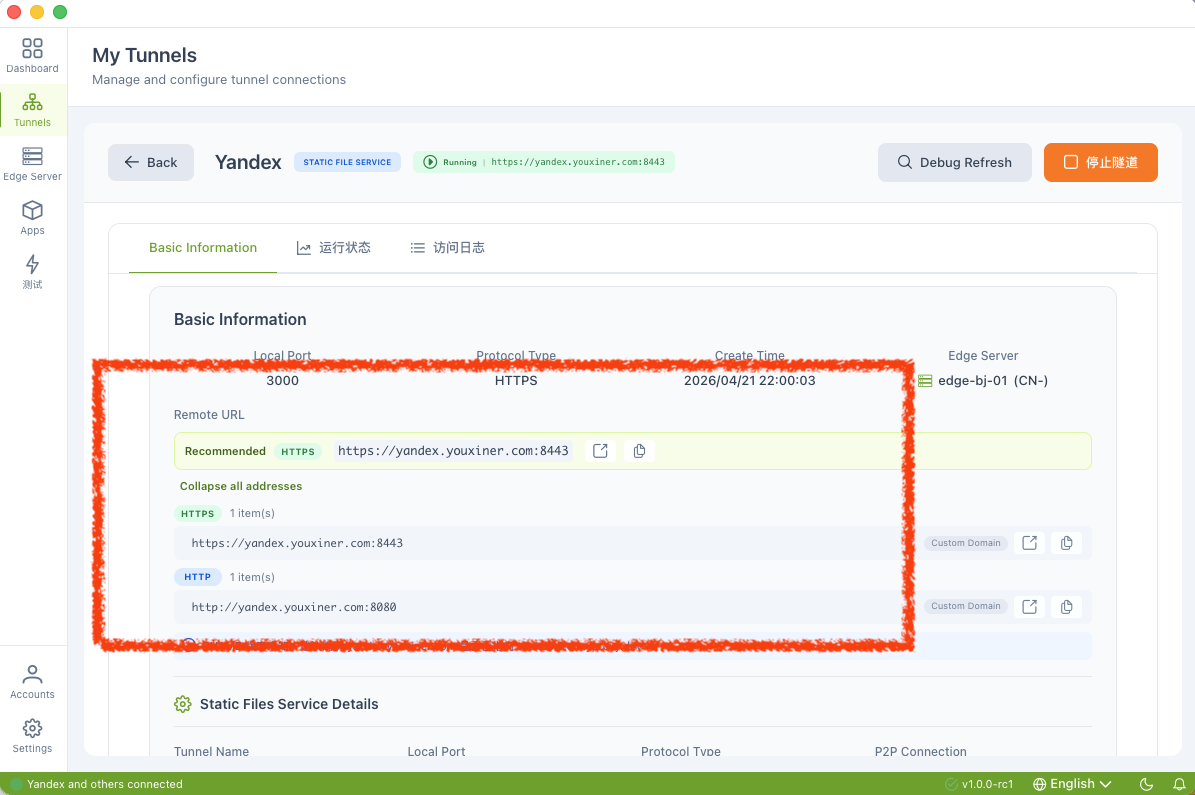

Description: Shows multiple addresses, copy buttons, CNAME status

3. Channel List

Shows all channels under the tunnel:

Channel Name	Protocol	Local Port	Remote Port	Status
VNC Channel	TCP	5900	12345	Running
VNC Channel	UDP	5900	12345	Running

📸 Tunnel Details - Channel List

Description: Shows channel key, protocol, port binding, status

4. Participant Information

Shows participating devices' roles:

• Device ID
• Role - Publisher / Consumer / Controller
• Status - Online / Offline
• Last Online Time

5. App Custom Tab

Some apps provide additional tabs:

ARD Example:

• Connection Status - Shows VNC service status

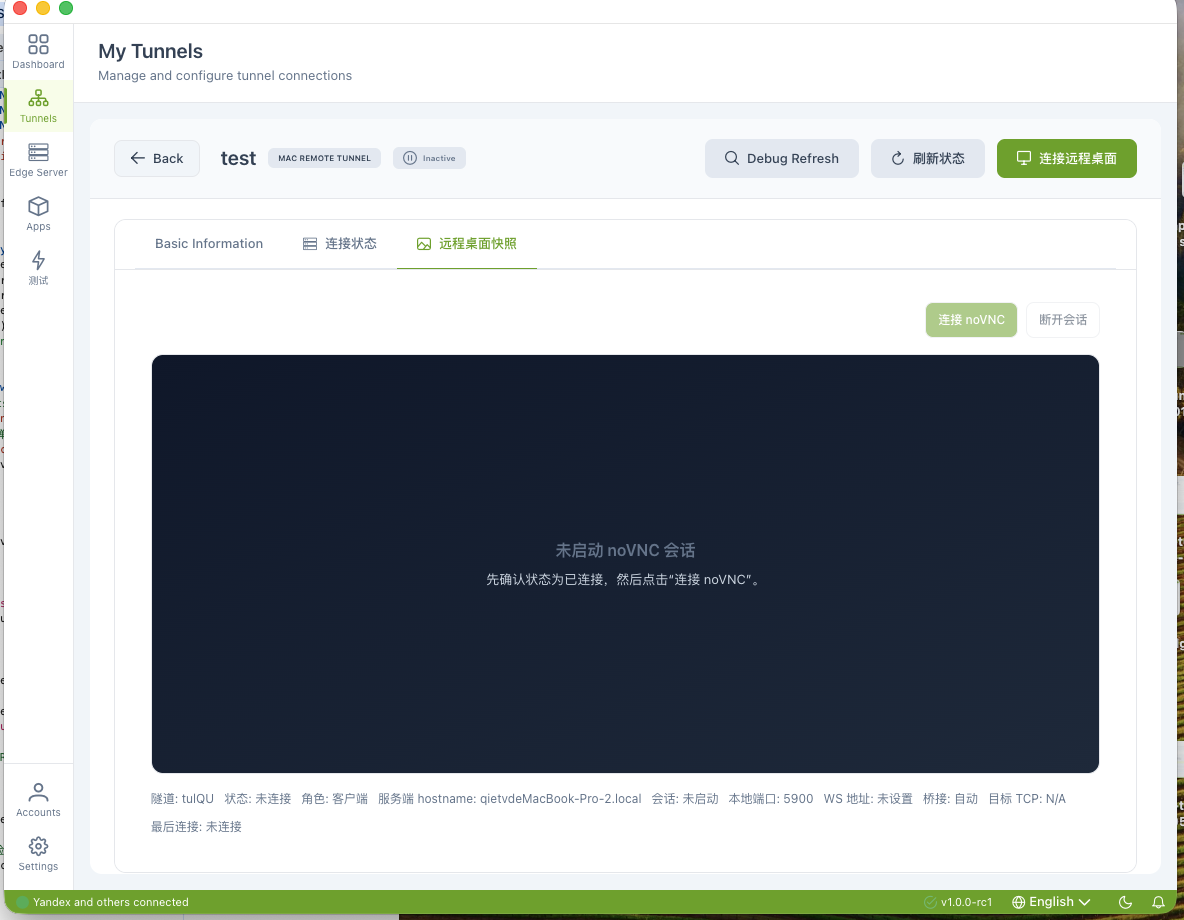

• Remote Desktop Snapshot - Shows remote desktop preview

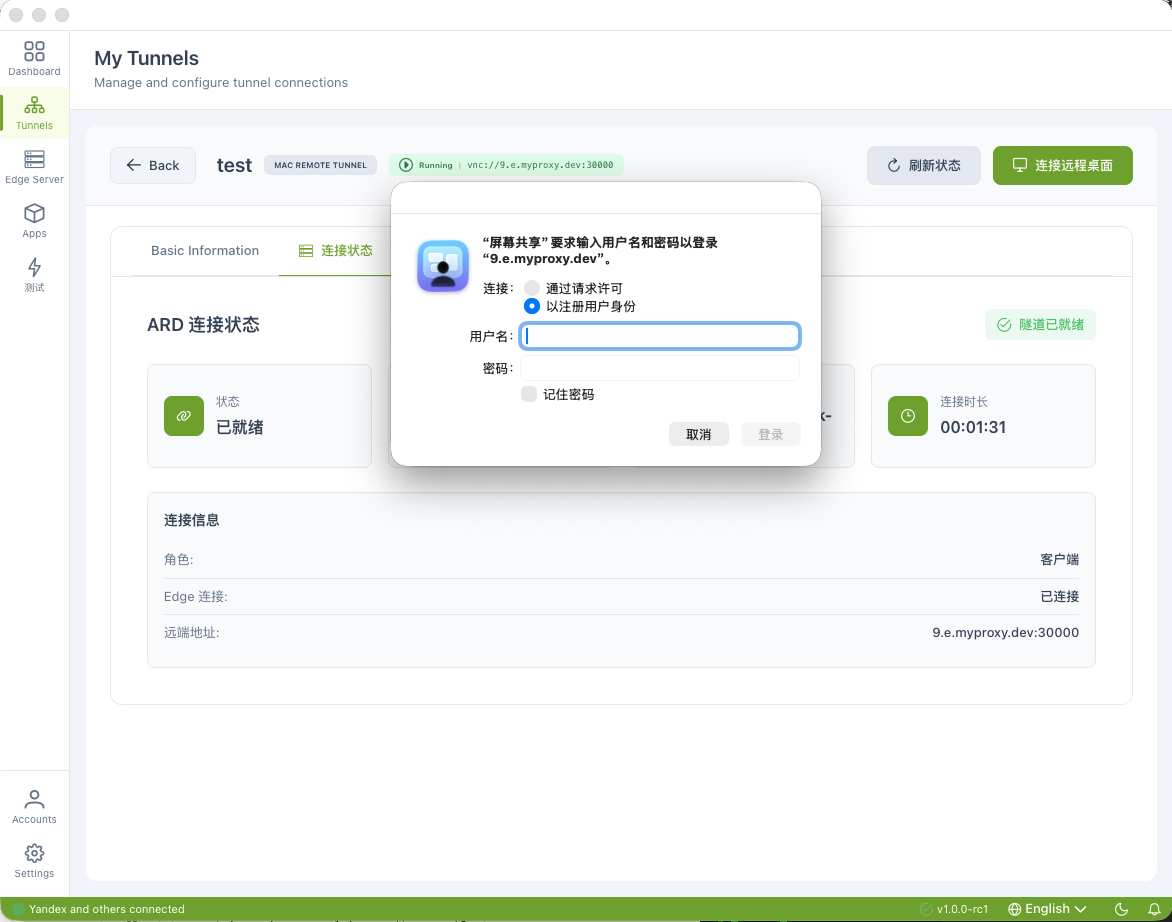

📸 Tunnel Details - ARD Custom Tab

Description: Shows connection status, desktop snapshot

---

Tunnel Sharing and Collaboration

Sharing Modes

YAT supports two sharing modes:

Exclusive

• 🔒 Only creator device can use
• 🚫 Other devices cannot join
• ✅ Suitable for personal use

Shared

• 👥 Other devices with same account can join
• 🔄 Auto sync channel status
• ✅ Suitable for multi-device collaboration

Set Sharing Mode

Set during creation: Select shared or exclusive in tunnel creation configuration form.

Modify after creation: Currently not supported, need to recreate tunnel.

Multi-Device Collaboration

Scenario Example

Scenario: Access home NAS from office

Setup Steps:

1. Home Device (Publisher)

   • Create tunnel, set to Shared
   • Role: Publisher
   • Start tunnel

2. Office Device (Consumer)

   • See shared tunnel
   • Role: Consumer
   • View remote address, access service

📸 Multi-Device Collaboration Diagram

Description: Shows Publisher and Consumer devices, tunnel sharing relationship

Role Description

Role	Permissions	Description
Publisher	Start/Stop/Control	Service provider
Consumer	View/Access	Service user
Controller	Manage configuration	Administrator (reserved)

---

Delete Tunnel

Delete Process

1. Find tunnel card
2. Click Delete button
3. Confirm delete

⚠️ Warning: Delete operation is irreversible!

Pre-delete Check

Apps can define check logic before deletion:

hooks: {
  onBeforeDelete(context) {
    // Check if there are running services
    if (context.tunnel.status === 'active') {
      alert('Please stop the tunnel first')
      return false
    }
    return true
  }
}

After Deletion

• ❌ Tunnel removed from list
• ❌ Channels on Edge cleaned up
• ❌ Assigned domain released
• ❌ Cannot be recovered

---

Tunnel Statistics

Statistics Cards

Top of Tunnels page displays statistics:

• Running - Number of currently running tunnels
• Stopped - Number of stopped tunnels
• Inbound Traffic - Received data volume
• Outbound Traffic - Sent data volume

📸 Statistics Cards

Description: Shows 4 statistical metrics

View Single Tunnel Traffic

In tunnel details, you can see that tunnel's traffic statistics.

---

FAQ

Q: Prompt "Port occupied" when creating tunnel

Reason: Local port is already occupied by another service.

Solution:

1. Change local port
2. Or close the service occupying that port

# macOS/Linux check port usage
lsof -i :8080

# Windows check port usage
netstat -ano | findstr :8080

Q: Tunnel stops immediately after starting

Possible Reasons:

1. Edge server offline
2. Local service not started
3. Network instability

Solution:

1. Check Edge status
2. Confirm local service running normally
3. Check error logs

Q: How to view tunnel logs?

Currently log feature is under development. You can troubleshoot by:

1. Check tunnel status prompts
2. Check Edge server logs
3. Submit Issue with screenshots

Q: How many tunnels can one Edge create?

Theoretically unlimited, but recommended:

• Single Edge not exceeding 20 tunnels
• Total bandwidth not exceeding Edge server capacity

Q: Can tunnels migrate across Edges?

Currently not supported. To change Edge, need to:

1. Delete original tunnel
2. Recreate on new Edge

---

💡 Best Practices

1. Naming Convention

Use meaningful names:

✅ My NAS - HTTP
✅ Dev Server - TCP 3000
✅ Home Camera - UDP
❌ Tunnel 1
❌ test

2. Port Selection

• Use non-privileged ports (>1024)
• Avoid common port conflicts
• Record port purposes

3. Security Recommendations

• Choose Exclusive mode for personal use
• Choose Shared mode for team collaboration
• Regularly clean up unused tunnels

4. Performance Optimization

• Prioritize P2P mode (lower latency)
• Use WireGuard mode for large file transfers
• Use HTTP/HTTPS for web services

---
