Edge Server Management

Learn how to deploy, manage, and subscribe to Edge servers

---

📋 Table of Contents

• What is Edge Server
• Edge Server Architecture
• Deploy Edge Server
• Manage Edge Server
• Subscribe to Shared Edge
• Edge Marketplace
• Domain and Health Check
• FAQ

---

What is Edge Server

Core Role

Edge server is YAT network's core node, responsible for:

• 🔄 Traffic Forwarding - Relay traffic between clients and servers
• 🔐 mTLS Authentication - Mutual TLS verification
• 📊 Status Sync - Real-time tunnel status synchronization
• 🌐 Domain Management - Assign and manage tunnel domains

Why Need Edge?

Traditional solution (requires public IP + port forwarding):
  External users → Router configuration → Internal service

YAT solution (no configuration needed):
  External users → Edge server → Internal service

Advantages:

• ✅ No public IP required
• ✅ No router configuration needed
• ✅ Automatic encryption
• ✅ Global deployment

Edge Types

Type	Description	Use Case
Self-built Edge	Edge you deploy yourself	Production environment, private deployment
Shared Edge	Edge shared by others	Testing, personal use

---

Edge Server Architecture

Component Structure

Edge Server
├── Configuration File (config.yaml)
├── Certificate Directory (certs/)
│   ├── root-ca.crt         # Root certificate
│   ├── edge-sub-ca.crt     # Edge sub-CA
│   ├── edge-tls.crt        # TLS certificate
│   └── edge-tls.key        # TLS private key
├── Database
│   ├── channels.db         # Channel status
│   └── wireguard.db        # WireGuard configuration
└── Binary File (yat-edge)

Startup Process

1. Bootstrap - Initialize configuration
2. RegisterNode - Register with Captain
3. Subscribe - Subscribe to control flow
4. Heartbeat - Heartbeat keep-alive

---

Deploy Edge Server

Prerequisites

• ✅ Public VPS (Ubuntu 18.04+ / CentOS 7+ Linux kernel 5.6+)
• ✅ Public IP address
• ✅ Domain (optional, for custom domains)

Method 1: Deploy with YAT Client (Recommended)

Step 1: Open Deployment Dialog

1. Click Edges > Create
2. Fill in Edge information:
   • Edge Name - Custom name
   • Node Type - Private or shared

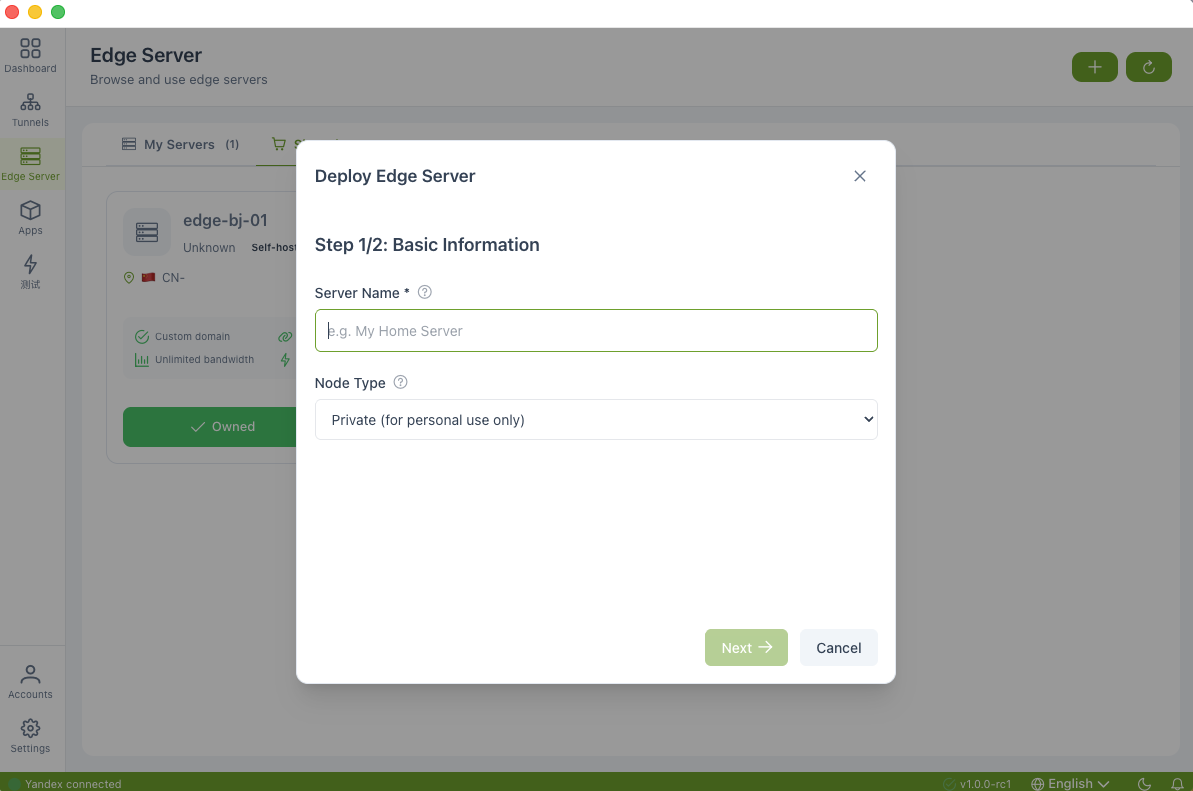

📸 Edge Deployment Dialog

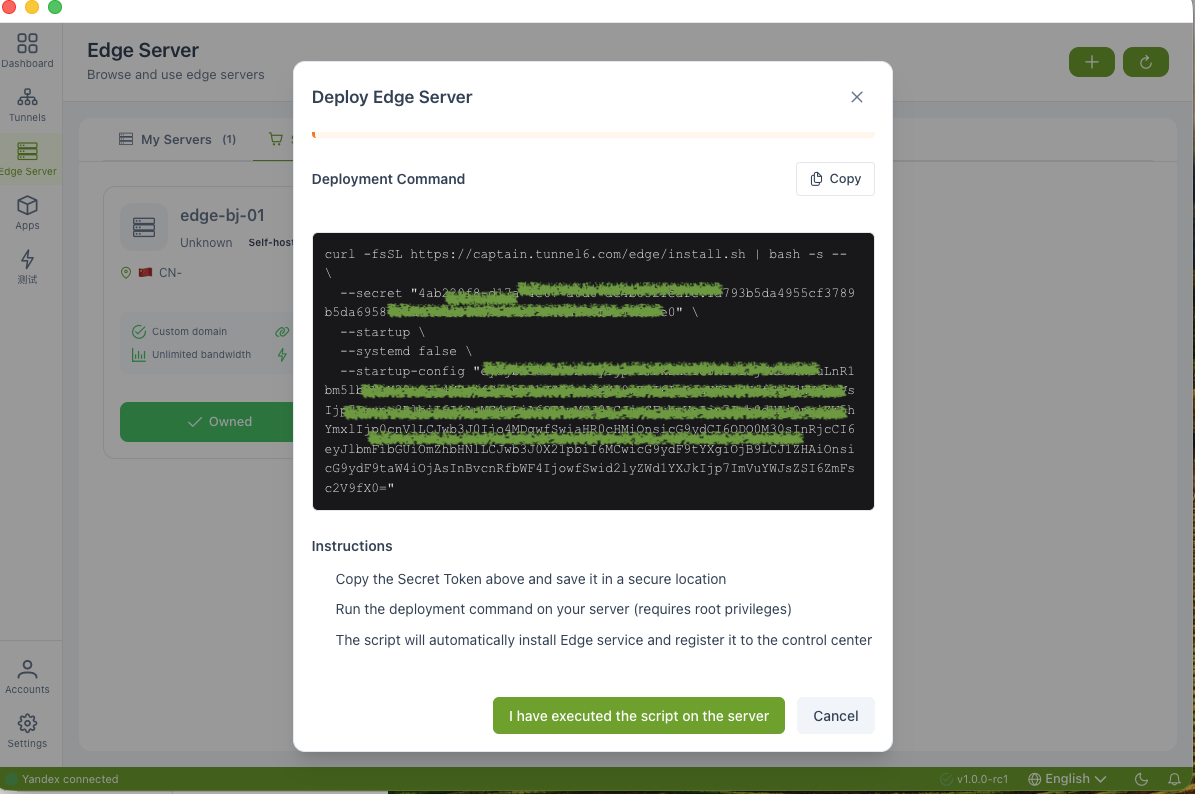

📸 Get Deployment Script

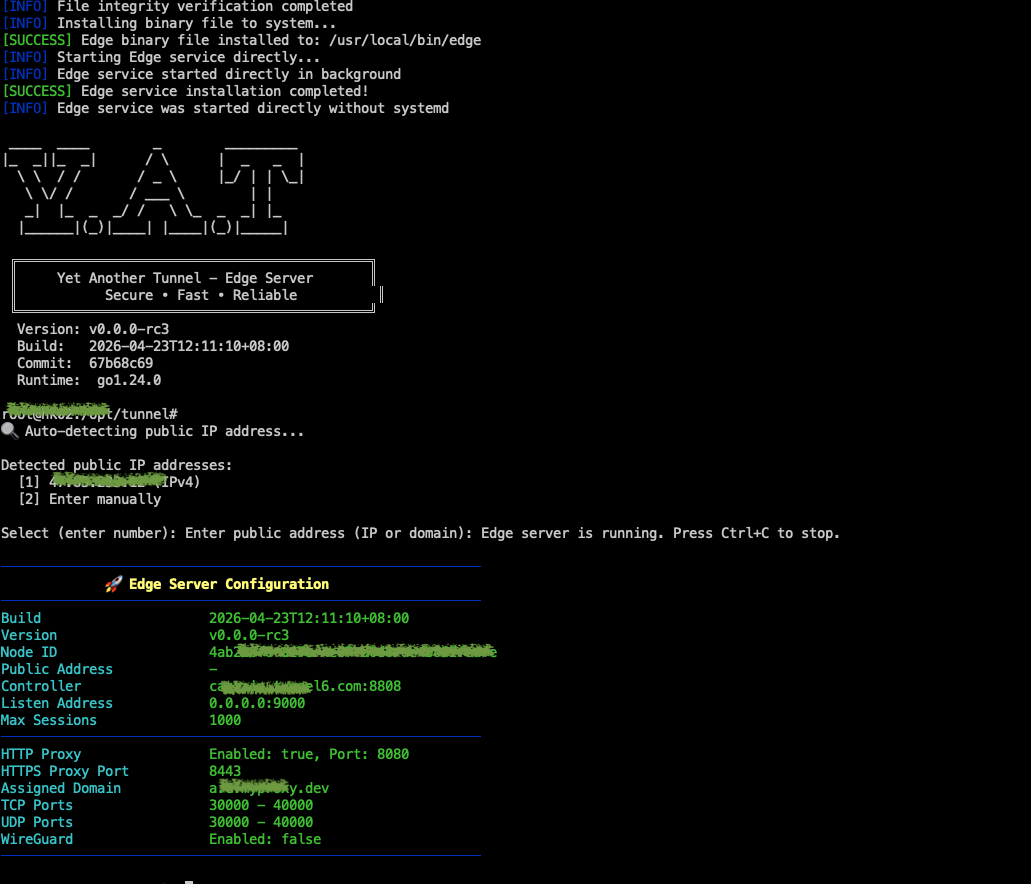

Step 2: Manual Deployment

1. Login to public server
2. Execute deployment script

📸 Edge Deployment Dialog

Step 4: Verify Deployment

After successful deployment:

• ✅ Edge appears in "My Edge" list
• ✅ Status shows Online
• ✅ Shows public IP and domain

Method 2: Manual Deployment

Step 1: Download Edge

# Download latest version
wget https://github.com/yat/releases/latest/download/yat-edge-linux-amd64

# Add execute permission
chmod +x yat-edge-linux-amd64

Step 2: Get Deployment Script (same as above)

Step 3: Start Edge

# Start in foreground (testing)
./yat-edge-linux-amd64 server start

# Start in background (production)
nohup ./yat-edge-linux-amd64 start --config config.yaml > edge.log 2>&1 &

Step 5: Configure systemd (optional)

# /etc/systemd/system/yat-edge.service
[Unit]
Description=YAT Edge Server
After=network.target

[Service]
Type=simple
ExecStart=/opt/yat/yat-edge-linux-amd64 server start
Restart=always
RestartSec=5

[Install]
WantedBy=multi-user.target

# Enable and start service
sudo systemctl daemon-reload
sudo systemctl enable yat-edge
sudo systemctl start yat-edge

# Check status
sudo systemctl status yat-edge

---

Manage Edge Server

View Edge List

Click Edges, switch to My tab:

📸 Edge List Page

Description: Shows Edge cards, status, action buttons

Edge Card Information

Each Edge card displays:

• Name - Edge name
• Status - Online/Offline (with icon)
• Public IP - Edge's public IP address
• Domain - System-assigned domain
• Tunnel Count - Number of tunnels on this Edge
• Service Status - Status of various services

Edge Operations

View Details

Click Details button to view:

• Basic information
• Network information (IP, domain)
• Domain health status
• Service running status
• Tunnel list

📸 Edge Details Page

Description: Shows detailed info, domain health, service status

Manage Configuration

Click Manage button (self-built Edge only):

• Modify name
• Modify description
• Restart Edge
• View deployment commands

📸 [Screenshot Location] Edge Management Dialog

Description: Shows configuration form, action buttons

Delete Edge

Click Delete button:

⚠️ Warning:

• Deleting Edge will clean up all related tunnels
• Certificates will be revoked
• Domains will be released

Monitor Edge Status

Online Status

• 🟢 Online - Edge running normally
• 🔴 Offline - Edge unreachable
• 🟡 Abnormal - Some services abnormal

Domain Health

Edge domain health status:

Status	Description	Action
Normal	DNS and certificate both normal	No action needed
DNS Abnormal	DNS record has issues	Check DNS configuration
Certificate Abnormal	Certificate expired or invalid	Regenerate certificate
Unknown - Cannot detect	Check Edge connection

---

Subscribe to Shared Edge

What is Shared Edge?

Other users can share their Edge with other devices under the same account.

Subscription Process

Step 1: Browse Edge Marketplace

1. Click Edges > Marketplace
2. View subscribable Edge list

📸 Edge Marketplace

Description: Shows subscribable Edges, subscribe buttons, owner info

Step 2: Subscribe to Edge

1. Select suitable Edge
2. Click Subscribe button
3. Confirm subscription

Step 3: Use Edge

After successful subscription:

• ✅ Edge appears in "My Edge" list
• ✅ Can create tunnels
• ✅ Can view status

Unsubscribe

1. Find Edge in "My Edge" list
2. Click Unsubscribe
3. Confirm unsubscribe

⚠️ Note:

• After unsubscribing, tunnels on that Edge will stop
• Need to resubscribe to restore

---

Edge Marketplace

Marketplace Features

Edge marketplace is a trading platform for shared Edges:

• 📦 Publish Edge - Share your Edge with others
• 🔍 Browse Edges - Find available Edges
• ⭐ Rating System - View other users' reviews (in development)
• 📊 Statistics - View Edge performance metrics

Publish Edge (In Development)

Edge sharing feature is currently under development, will support:

• Set sharing permissions
• Configure usage limits
• View usage statistics

---

Domain and Health Check

System-Assigned Domain

Each Edge is automatically assigned a domain:

Format: {edge-id}.edge.myroxy.dev
Example: abc123.edge.myroxy.dev

Custom Domain

You can configure custom domain for Edge:

Step 1: Add Domain

Add custom domain in Edge management:

• edge.example.com

Step 2: Configure DNS

Add CNAME record:

Type: CNAME
Name: edge
Value: abc123.edge.myroxy.dev
TTL: 300

📸 [Screenshot Location] DNS Configuration提示

Description: Shows DNS record type, name, value, copy button

Step 3: Verify DNS

YAT will automatically verify DNS configuration:

• ✅ Verification Passed - Domain available
• ❌ Verification Failed - Check DNS record

Step 4: Automatic Certificate

After verification passes, YAT will automatically:

1. Apply for Let's Encrypt certificate
2. Configure TLS
3. Enable HTTPS

Health Check

YAT periodically checks Edge domain health:

Check Items:

• DNS resolution
• Certificate validity
• HTTPS connection
• Response time

Check Frequency: Every 5 minutes

---

FAQ

Q: What to do when Edge shows offline?

Checklist:

1. Is server running normally
2. Is firewall blocking port 443
3. Is Edge process running
4. Is network connection normal

Resolution Steps:

# 1. Check Edge process
ps aux | grep yat-edge

# 2. Check port
netstat -tlnp | grep 443

# 3. View logs
journalctl -u yat-edge -n 100

# 4. Restart service
sudo systemctl restart yat-edge

Q: How to view Edge logs?

# systemd method
sudo journalctl -u yat-edge -f

# Direct log file
tail -f /var/log/yat-edge.log

Q: Can Edge change IP?

Yes, but need to:

1. Update DNS record
2. Regenerate certificate
3. Restart Edge

Q: How many Edges can one account create?

Currently no limit, but recommended:

• Personal users: 1-3 Edges
• Team users: 5-10 Edges

Q: Edge server performance requirements?

Minimum Configuration:

• CPU: 1 core
• Memory: 512MB
• Bandwidth: 1Mbps
• Storage: 1GB

Recommended Configuration:

• CPU: 2 cores
• Memory: 1GB
• Bandwidth: 10Mbps
• Storage: 5GB

Q: Which operating systems does Edge support?

• ✅ Ubuntu 18.04+
• ✅ CentOS 7+
• ✅ Debian 9+
• ✅ macOS (development testing)
• ❌ Windows (not supported yet)

---

💡 Best Practices

1. Choose Server Location

Choose server closest to you and target users:

• China users: Hong Kong, Japan, Singapore
• Europe/US users: Frankfurt, US West
• Global users: Multi-region deployment

2. Security Hardening

# Disable password login, use key only
sudo vim /etc/ssh/sshd_config
PasswordAuthentication no

# Configure firewall
sudo ufw allow 443/tcp
sudo ufw allow 80/tcp
sudo ufw enable

# Regular system updates
sudo apt update && sudo apt upgrade

3. Monitoring and Alerting

# Install monitoring tools
sudo apt install htop iotop nethogs

# Setup log rotation
sudo vim /etc/logrotate.d/yat-edge
/var/log/yat-edge.log {
    daily
    rotate 7
    compress
    missingok
}

4. Backup Configuration

# Backup certificates and configuration
tar czf edge-backup-$(date +%Y%m%d).tar.gz \
  config.yaml certs/ data/

# Regular backup (cron)
0 2 * * * /opt/yat/backup.sh

---

📚 Related Documentation

• Quick Start - Subscribe to your first Edge
• Tunnel Management - Create tunnels on Edge
• Custom Domains - Configure Edge domains
• FAQ - Solve Edge-related issues

---

YAT Team - Making intranet penetration simpler
