Quick Start

Get started with YAT in 5 minutes, create your first tunnel

---

📋 Prerequisites

• ✅ macOS 10.15+ / Windows 10+ / Linux (Ubuntu 18.04+)
• ✅ Network connection
• ✅ YAT account (supports GitHub/Google login)

---

Step 1: Install YAT Client

macOS

1. Download the .dmg package
2. Double-click to open, drag to Applications folder
3. Launch from Launchpad or Applications folder

⚠️ First Launch: If prompted "Cannot verify developer", go to System Settings > Privacy & Security > Open Anyway

Windows

1. Download the .exe installer
2. Double-click to run the installation wizard
3. Follow prompts to complete installation

Linux

# Download AppImage
chmod +x yat-*.AppImage
./yat-*.AppImage

Verify Installation

After launching, you should see YAT's main interface:

📸 YAT Main Interface - First Launch

Description: Shows welcome page, login button, feature introduction

---

Step 2: Login

Login Methods

YAT supports the following login methods:

1. GitHub Login (Recommended)
2. Google Login
3. Email Registration (Coming soon)

Login Process

1. Click the Login button
2. Select login method
3. Authorize YAT to access your account
4. Complete login

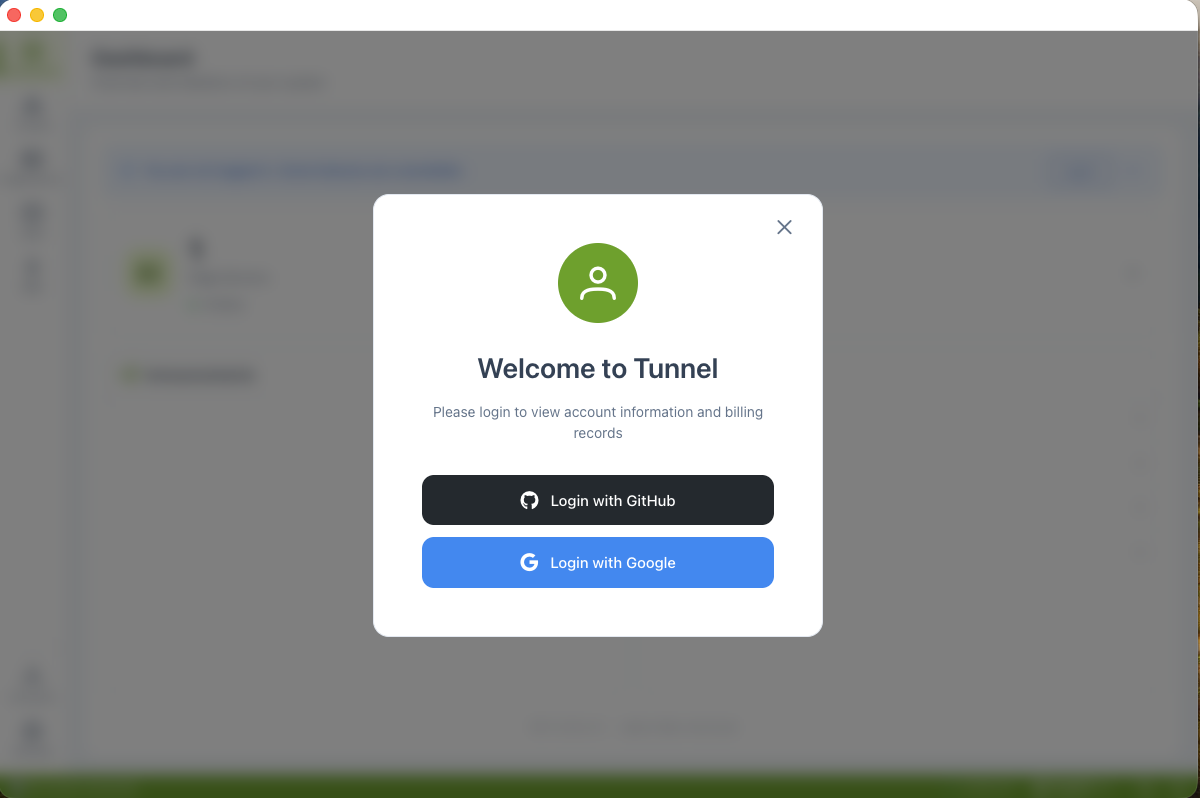

Login Page

Description: Shows GitHub/Google login buttons

After Login

After successful login, you'll enter the main interface where you can see:

• 📊 Dashboard - Overview statistics
• 🔌 Tunnels - Tunnel management
• 🖥️ Edges - Edge server management
• 🧩 Apps - Apps and extensions
• ⚙️ Settings - Settings

---

Step 3: Subscribe to Edge Server

Edge servers are YAT network's relay nodes. For new users, we recommend subscribing to shared Edge servers first.

Subscribe to Shared Edge

1. Click Edges in the left navigation
2. Switch to Marketplace tab
3. Select an available Edge server
4. Click Subscribe button

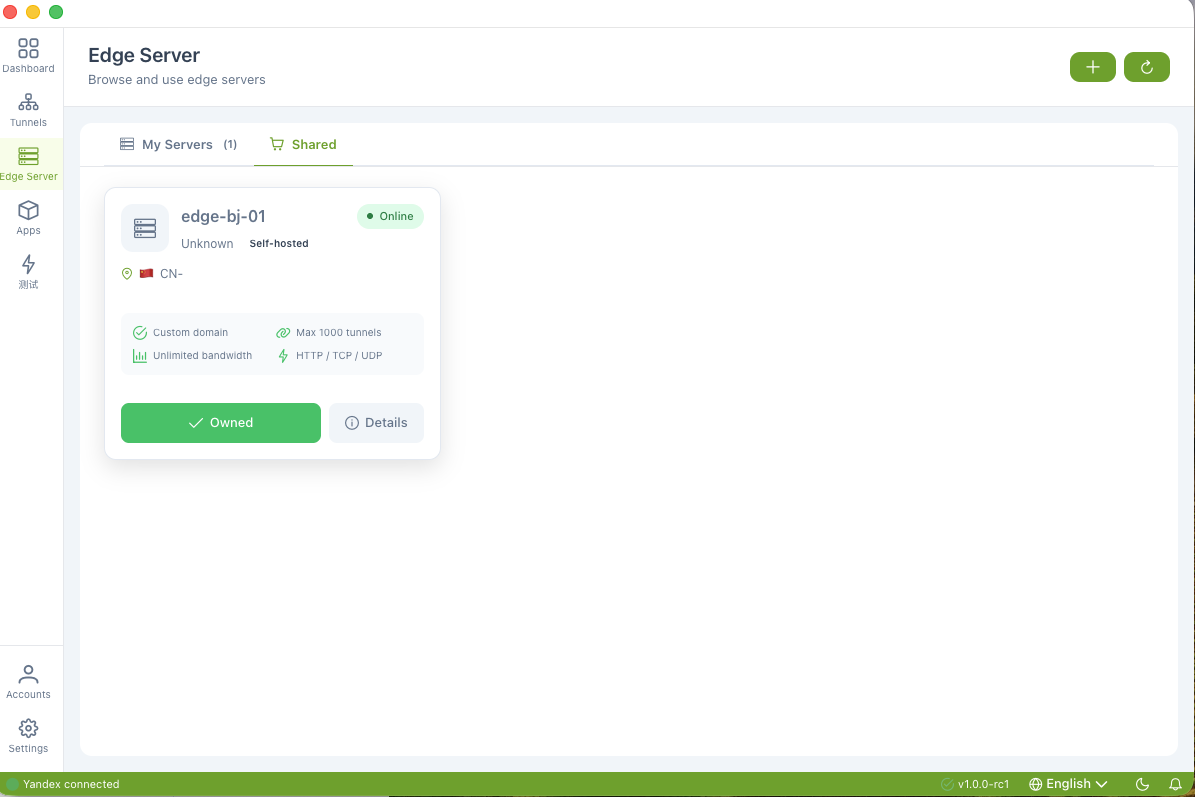

📸 Edge Marketplace Page

Description: Shows subscribable Edge list, subscribe button

Verify Subscription

After successful subscription, the Edge will appear in My tab with status Online.

---

Step 4: Create Your First Tunnel

Now let's create an HTTP tunnel to expose a local service to the public network.

Prepare Local Service

If you don't have a local service, quickly start one:

# Start simple HTTP server with Python
python3 -m http.server 8080

# Or use Node.js
npx http-server -p 8080

Visit http://localhost:8080 to confirm the service is running normally.

Create Tunnel

1. Click Tunnels in the left navigation
2. Click Create Tunnel button
3. Select HTTP Proxy app
4. Select your subscribed Edge server
5. Fill in configuration:
   • Tunnel Name: My Test Service
   • Local Port: 8080
   • Sharing Settings: Exclusive (Recommended)
6. Click Create

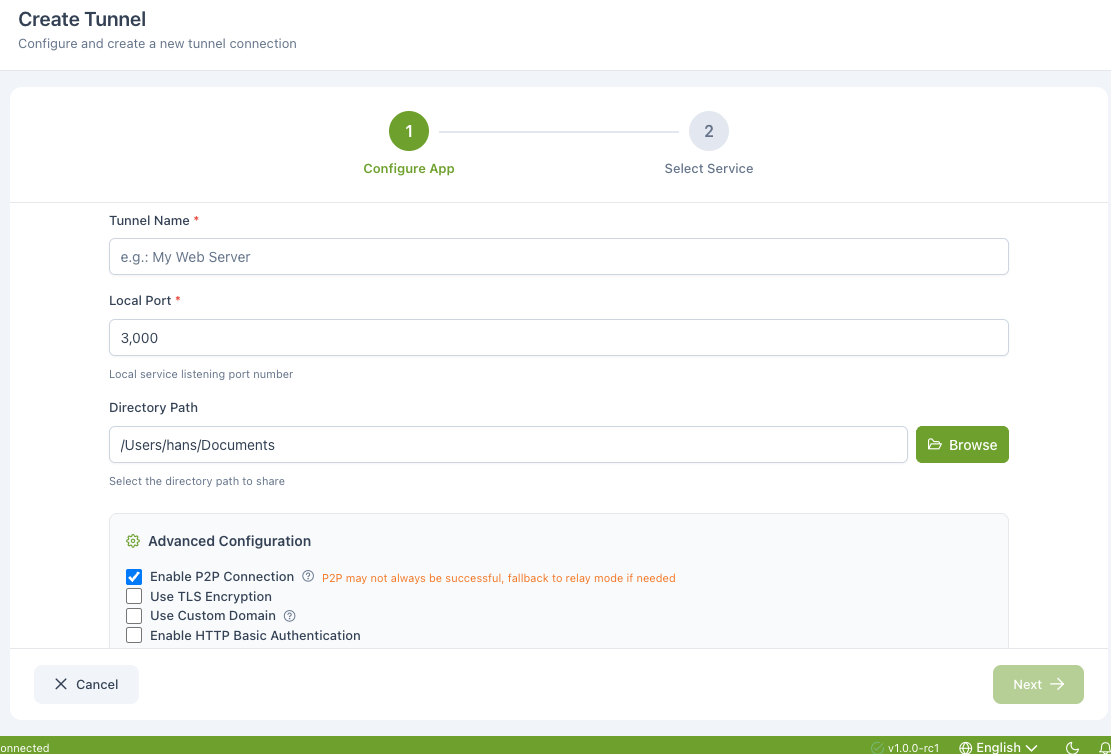

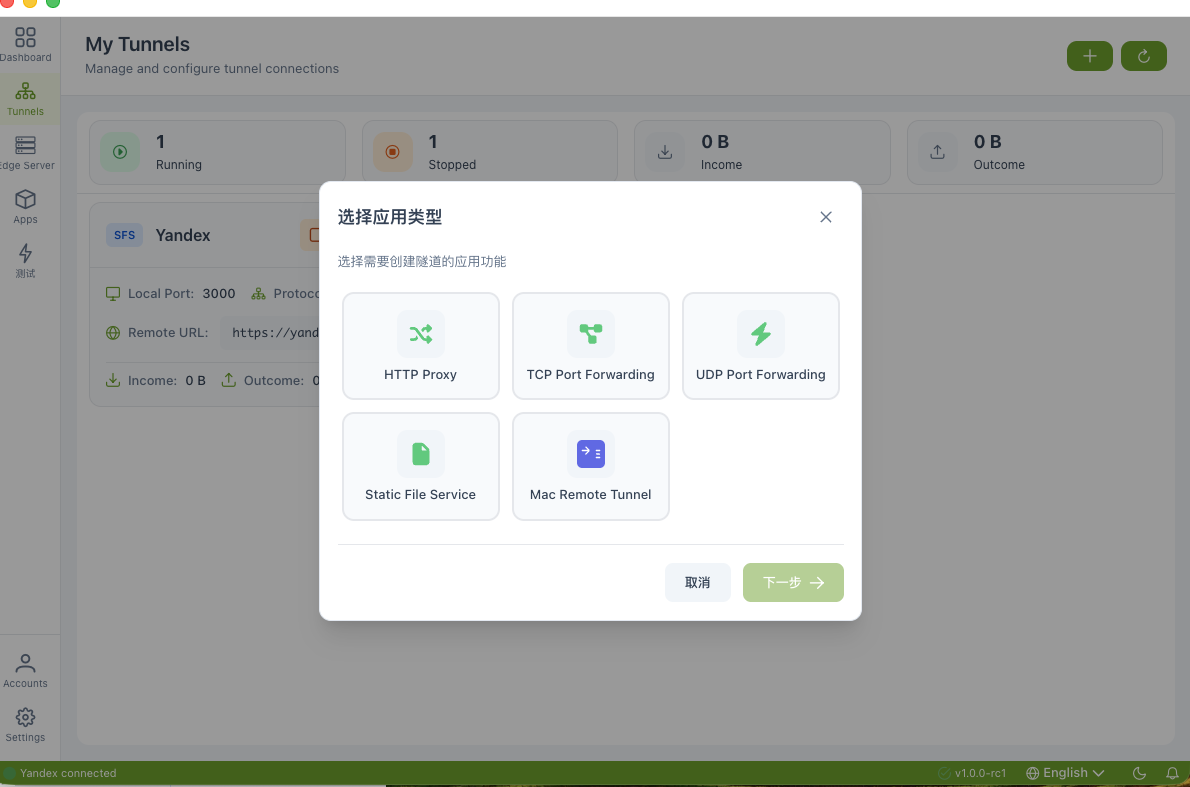

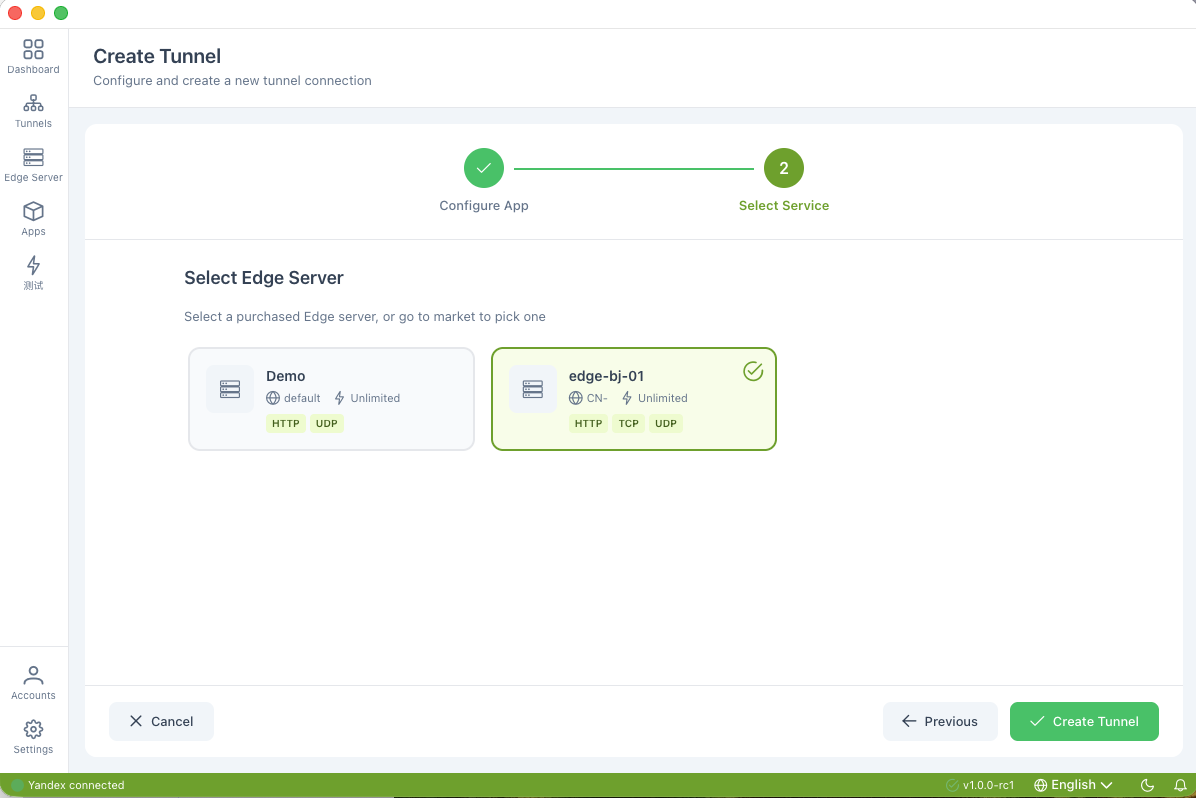

Create Tunnel Dialog Description: Shows app selection, Edge selection, configuration form

Creation Successful

After successful creation, the tunnel will appear in the tunnel list with status Inactive.

---

Step 5: Start Tunnel

1. Find the newly created tunnel card
2. Click Start button
3. Wait for status to change to Running

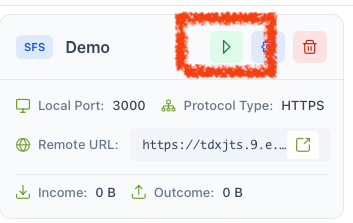

Tunnel Startup Process

Description: Shows start button, status changes, loading animation

Start Successful

After successful start, the tunnel card will display:

• ✅ Status: Running (green)
• 🌐 Remote Address: https://xxx.myroxy.dev
• 📊 Traffic statistics

---

Step 6: Access Remote Service

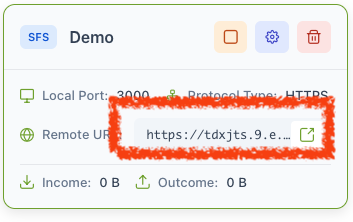

Get Remote Address

On the tunnel card, find the Remote Address section:

https://abc123-def456.myroxy.dev

Test Access

1. Copy the remote address
2. Open in browser
3. You should see the same content as http://localhost:8080

📸 Browser Accessing Remote Address

Description: Shows webpage accessed through YAT tunnel

🎉 Congratulations!

You've successfully created and started your first YAT tunnel!

---

🎯 5-Minute Experience Checklist

• [x] Install YAT client
• [x] Register and login
• [x] Subscribe to Edge server
• [x] Create HTTP tunnel
• [x] Start tunnel
• [x] Access remote service

---

🚀 Next Steps

Now that you've experienced YAT's basic features, explore more advanced features:

Recommended Learning Path

1. Tunnel Management - Learn to create TCP/UDP tunnels, tunnel sharing, etc.
2. Edge Server Management - Deploy your own Edge server
3. Apps and Extensions - Use ARD remote desktop

Common Operations Quick Reference

Operation	Location	Description
Create Tunnel	Tunnels > Create Tunnel	Select app and Edge
Start/Stop	Tunnel Card > Button	Control tunnel status
View Details	Tunnel Card > View Details	View channels, domains, etc.
Delete Tunnel	Tunnel Card > Delete	Permanently delete tunnel
Subscribe Edge	Edges > Marketplace > Subscribe	Subscribe to shared Edge
Deploy Edge	Edges > Create	Deploy your own Edge

---

💡 FAQ

Q: Prompt "No available Edge" when creating tunnel

Reason: You haven't subscribed to any Edge server.

Solution: Go to Edges > Marketplace, subscribe to a shared Edge.

Q: Tunnel fails to start

Possible Reasons:

1. Edge server offline
2. Local port occupied
3. Network connection issue

Solution:

1. Check Edge status (should be online)
2. Confirm local port is accessible
3. Check error message, or refer to FAQ

Q: Remote address inaccessible

Checklist:

• [ ] Is tunnel status "Running"
• [ ] Is local service running normally
• [ ] Does browser show certificate error (ignore and continue)
• [ ] Is Edge server online

---

📚 Related Documentation

• What is YAT - Learn YAT's core features
• Tunnel Management - Deep dive into tunnel management
• Edge Server Management - Deploy and manage Edge
• FAQ - Solve common issues

---

YAT Team - Making intranet penetration simpler
