Custom Domains

Configure custom domains for tunnels to enhance professional image

---

📋 Table of Contents

• Overview
• System-Assigned Domain
• Configure Custom Domain
• DNS Record Setup
• Certificate Management
• CNAME Verification
• FAQ

---

Overview

Why Need Custom Domains?

System-assigned domain:

https://abc123-def456.edge.myroxy.dev

Custom domain:

https://api.yourcompany.com

Advantages:

• ✅ More professional appearance
• ✅ Easy to remember
• ✅ Brand consistency
• ✅ SEO friendly

---

System-Assigned Domain

Domain Format

Each tunnel is automatically assigned a domain:

Format: {subdomain}.{base-domain}
Example: abc123.edge.myroxy.dev

Subdomain Generation Rules

• Uses base36 encoding
• Based on Edge auto-increment ID
• Lifecycle remains unchanged

---

Configure Custom Domain

Step 1: Prepare Domain

Ensure you own a domain, e.g., yourcompany.com

Step 2: Add DNS Record

HTTP/HTTPS Tunnel

Add CNAME record:

Type: CNAME
Name: api (or @)
Value: abc123-def456.edge.myroxy.dev
TTL: 300

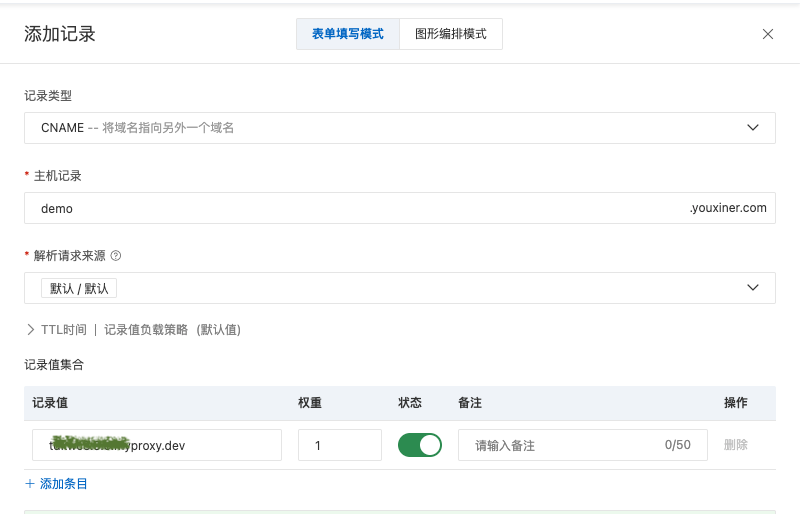

📸 DNS Configuration Example

Description: Shows DNS provider backend, CNAME record configuration

TCP/UDP Tunnel

TCP/UDP tunnels do not support custom domains, can only use IP:Port.

Step 3: Configure in YAT

1. Open tunnel details
2. Find Custom Domain section
3. Click Add Domain
4. Enter your domain
5. Click Save

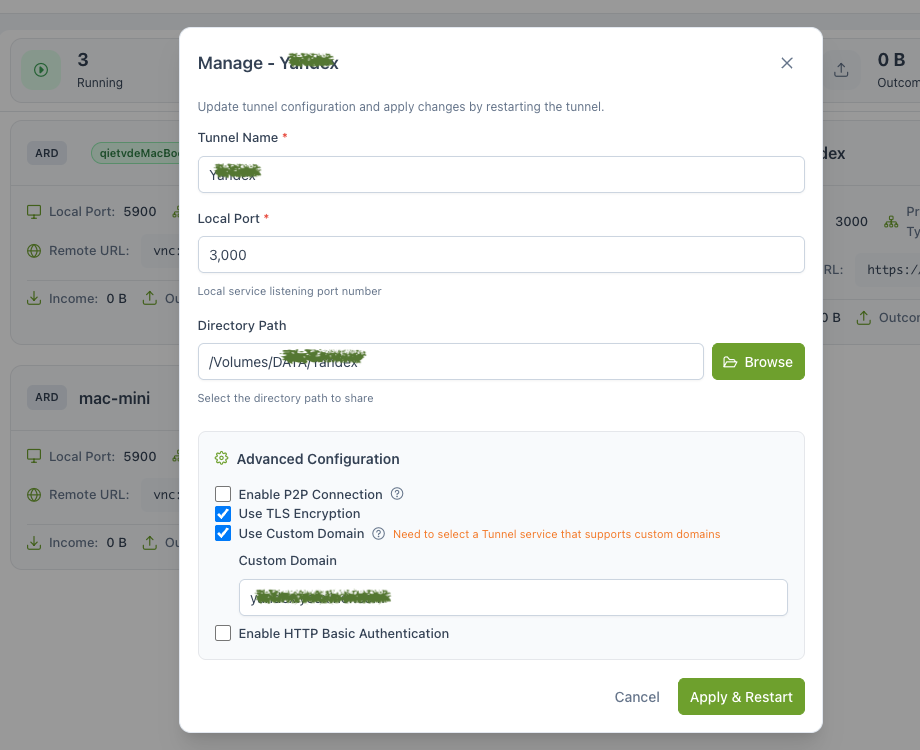

📸 YAT Custom Domain Configuration

Description: Shows domain input, save button, verification status

Step 4: Verify DNS

YAT will automatically verify DNS configuration:

• ✅ Verification Passed - Domain available, auto-apply certificate
• ⏳ Verifying - Waiting for DNS propagation
• ❌ Verification Failed - Check DNS record

---

DNS Record Setup

Common DNS Providers

Cloudflare

1. Login to Cloudflare Dashboard
2. Select domain
3. Click DNS
4. Add CNAME record

Alibaba Cloud

1. Login to Alibaba Cloud Console
2. Go to DNS Resolution
3. Select domain
4. Add record

Tencent Cloud

1. Login to Tencent Cloud Console
2. Go to DNS Resolution
3. Select domain
4. Add record

DNS Propagation Time

• Typical: 1-5 minutes
• Maximum: 48 hours
• TTL Setting: Recommended 300 seconds (5 minutes)

Verify DNS Configuration

# Using dig
dig api.yourcompany.com CNAME

# Using nslookup
nslookup -type=CNAME api.yourcompany.com

# Test with curl
curl -I https://api.yourcompany.com

---

Certificate Management

Automatic Certificate Issuance

After verification passes, YAT will automatically:

1. DNS-01 Challenge - Verify domain ownership
2. Apply Certificate - Let's Encrypt free certificate
3. Configure TLS - Auto-enable HTTPS
4. Certificate Renewal - Auto-renew before expiration

Certificate Status

Status	Description	Action
Normal	Certificate valid	No action needed
Expiring Soon	Expires within 30 days	Wait for auto-renewal
Expired	Certificate expired	Manually trigger renewal
Application Failed	Challenge failed	Check DNS

Manually Renew Certificate

1. Enter tunnel details
2. Click Renew Certificate button
3. Wait for completion

---

CNAME Verification

Verification Process

1. YAT checks DNS record
   ↓
2. Resolve CNAME target
   ↓
3. Compare with system-assigned domain
   ↓
4. Return verification result

Verification Failure Troubleshooting

Issue 1: DNS Record Not Effective

Symptom: Verification failed, DNS record mismatch

Solution:

# Wait for DNS propagation
# Or flush local DNS cache

# macOS
sudo dscacheutil -flushcache
sudo killall -HUP mDNSResponder

# Linux
sudo systemd-resolve --flush-caches

# Windows
ipconfig /flushdns

Issue 2: Incorrect CNAME Value

Symptom: CNAME target address incorrect

Solution:

1. Check if CNAME value is system-assigned domain
2. Copy correct domain
3. Update DNS record

Issue 3: Using A Record Instead of CNAME

Symptom: Configured A record

Solution:

• Must use CNAME record
• Cannot use A record pointing to IP

---

FAQ

Q: Can one tunnel configure multiple custom domains?

Currently does not support multiple domains. One tunnel can only configure one custom domain.

Q: Do custom domains require additional payment?

No. YAT provides free certificates and domain configuration.

Q: Are wildcard domains supported?

Currently does not support wildcard domains (e.g., *.example.com).

Q: Do TCP/UDP tunnels support custom domains?

No. TCP/UDP tunnels can only use IP:Port.

Q: Will certificate auto-renew after expiration?

Yes. YAT will auto-renew 30 days before expiration.

Q: How to view certificate information?

In tunnel details' Domain Status section, you can see:

• Certificate issuer
• Validity period
• Status

---

💡 Best Practices

1. Choose Subdomain

✅ api.yourcompany.com     - API service
✅ app.yourcompany.com     - Web application
✅ dev.yourcompany.com     - Development environment
❌ yourcompany.com         - Root domain (not recommended)

2. Set Reasonable TTL

• Development: 60 seconds (quick switching)
• Production: 300 seconds (balance performance and flexibility)

3. Monitor Certificate Status

Regularly check certificate status to ensure auto-renewal works properly.

4. Use HTTPS

Always use HTTPS to avoid mixed content warnings.

---

📚 Related Documentation

• Tunnel Management - Create and manage tunnels
• Edge Server Management - Edge domain configuration
• FAQ - Solve domain-related issues

---

YAT Team - Making intranet penetration simpler
